Marin Bikes

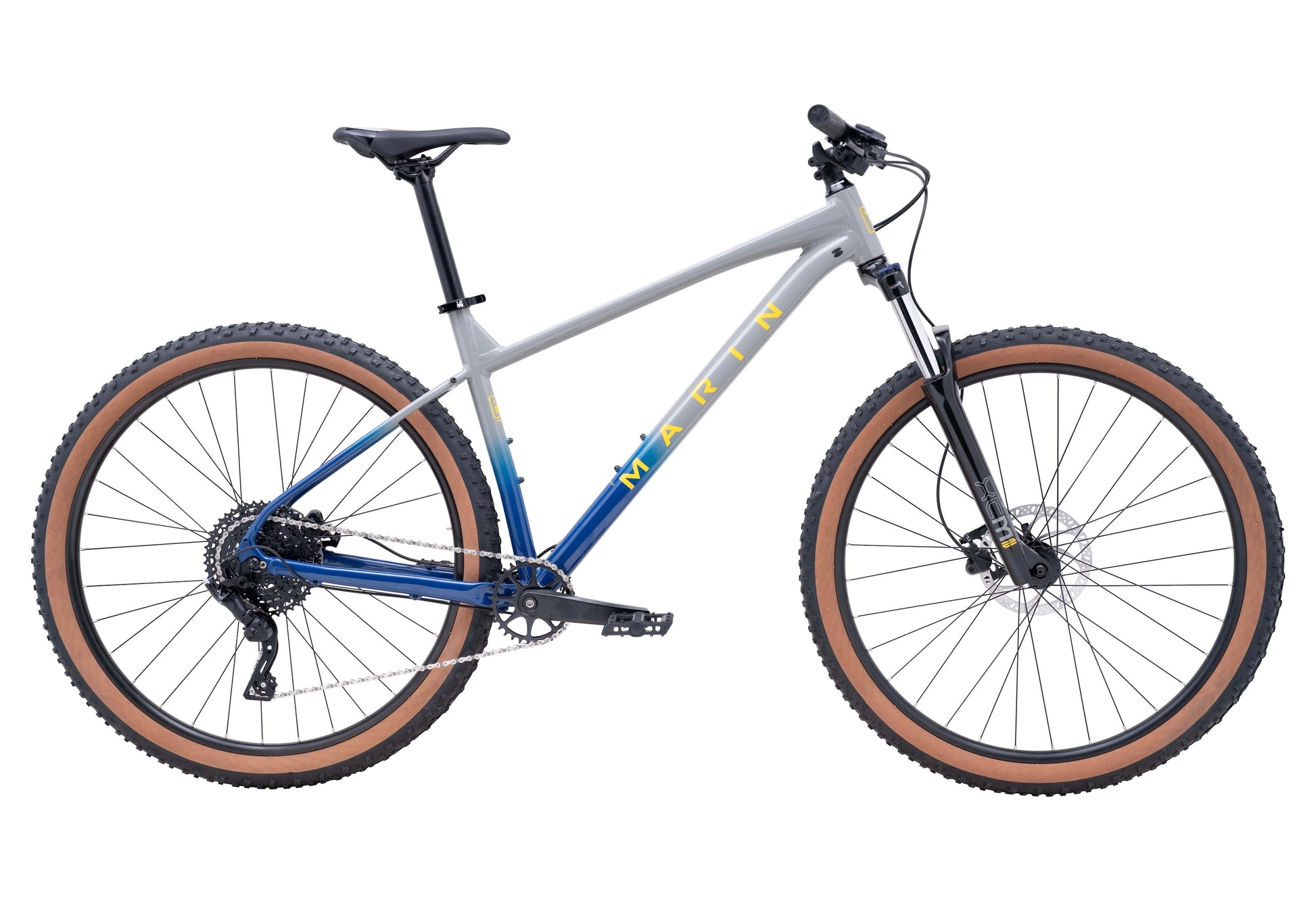

Marin Bobcat Trail 3 Hardtail Mountain Bike 29"

Marin Bobcat Trail 3 Hardtail Mountain Bike 29"

$829.00 USD
$829.00 USD
Sale Sold out
Shipping calculated at checkout.
Color
Size

HARDTAIL TRAIL RIDING

AGGRESSIVE SINGLETRACK

The Marin Bobcat Trail 3 is our most-affordable Bobcat, creating the biggest smiles for the least possible dollars. Its heart is a Series 2 aluminum frame that’s fast, comfy and fun on the trails. There are options for 27.5” and 29” wheels and the bike is built with a trail-taming SR/Suntour suspension fork, wide-range microSHIFT 9-speed drivetrain, and powerful Tektro hydraulic brakes.

Specifications

  • Frame

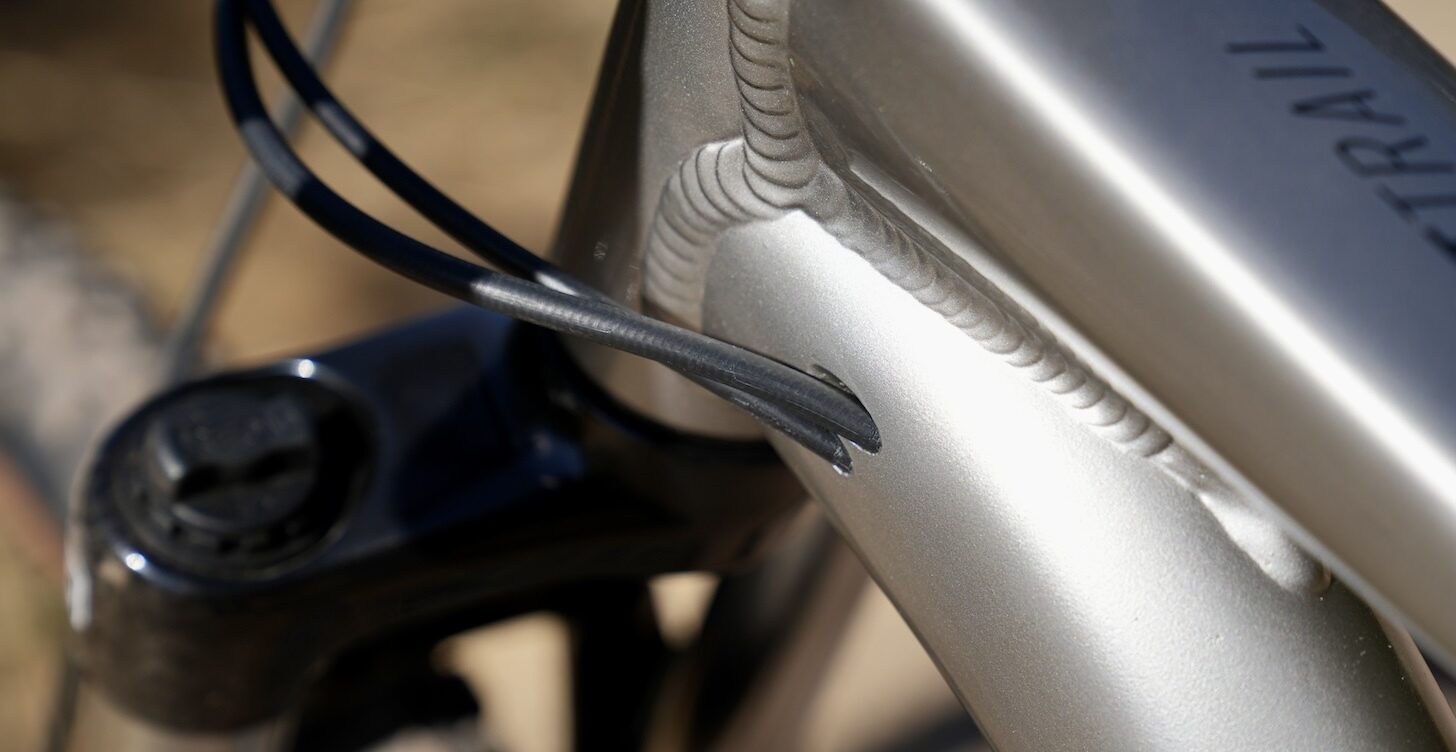

    Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 141mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

  • Front Suspension

    SR/Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset

  • Rim

    Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

  • Hub Rear

    Forged Alloy, Disc, 32H

  • Hub Front

    Forged Alloy, Disc, 32H

  • Spokes

    14g Black Stainless Steel

  • Tires

    MTB, 27.5/29x2.25"

  • Derailleur Rear

    microSHIFT Advent 9, Clutch

  • Derailleur Front

    -

  • Shift Lever

    microSHIFT Advent 9 Trail

  • Crankset

    Alloy Crank, Steel Narrow-Wide Chainring, 32T

  • Bottom Bracket

    Sealed Cartridge Bearings, Square Taper

  • Chain

    KMC X9

  • Cassette

    SunRace 9-Speed, 11-46T

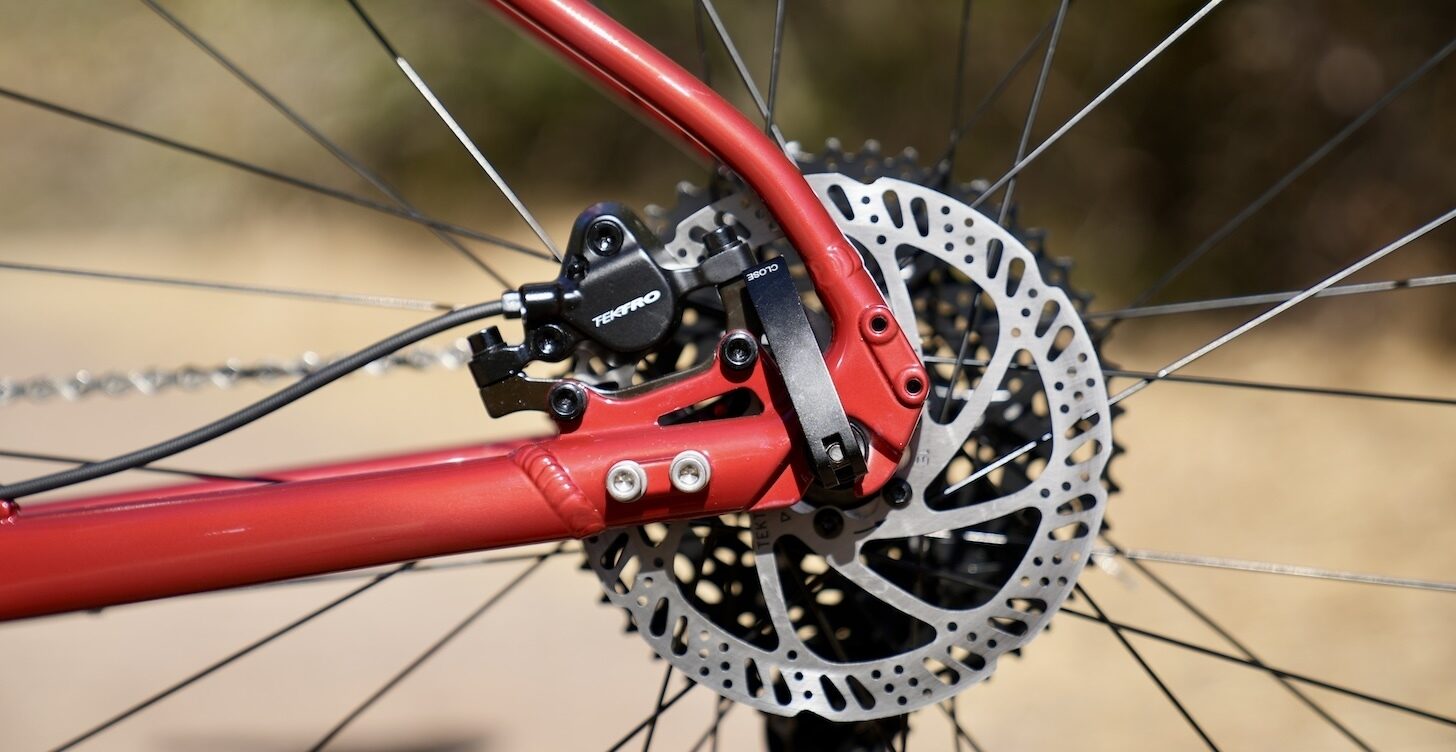

  • Brakes Front

    Tektro M280 Hydraulic Disc, 180mm Rotor

  • Brakes Rear

    Tektro M280 Hydraulic Disc, 160mm Rotor

  • Brake Levers

    Tektro M280 Hydraulic

  • Handlebar

    Marin 31.8 Riser, 12mm Rise, 780mm Width, XS/S models have 740mm Width.

  • Stem

    Marin Alloy, 31.8mm Clamp, 45mm

  • Grips

    Marin MTB, Closed End

  • Headset

    FSA No.10-P

  • Seatpost

    Marin Alloy, 30.9

  • Saddle

    Marin MTB

  • Pedals

    Nylon Platform

Specifications, pricing, and availability are subject to change without notice.

Geometry

Bobcat Trail 3 geometry diagram
XS S M (27.5) M (29) L XL
Stack 599 603 608 635 639 644
Reach 430 445 455 455 475 495
Head Tube Angle 66.5° 66.5° 66.5° 66° 66° 66°
Head Tube Length 100 105 110 110 115 120
Seat Tube Angle 74.5° 74.5° 74.5° 74.5° 74.5° 74.5°
Seat Tube Length 330 381 431 431 482 520
Top Tube Effective 596 612 623 631 652 673
BB Height 307 307 307 311.5 311.5 311.5
BB Drop 48 48 48 61 61 61
Chain Stay 415 415 415 430 430 430
Wheel Base 1127 1144 1156 1186 1208 1230
Stand Over Height 620 640 690 704 732 760
Fork Offset 42 42 42 46 46 46
SeatPost Diameter 30.9 30.9 30.9 30.9 30.9 30.9
Handlebar Width 780 780 780 780 780 780
Stem Length 45 45 45 45 45 45
Crank Length 170 170 170 170 170 170

All lengths in millimeters
