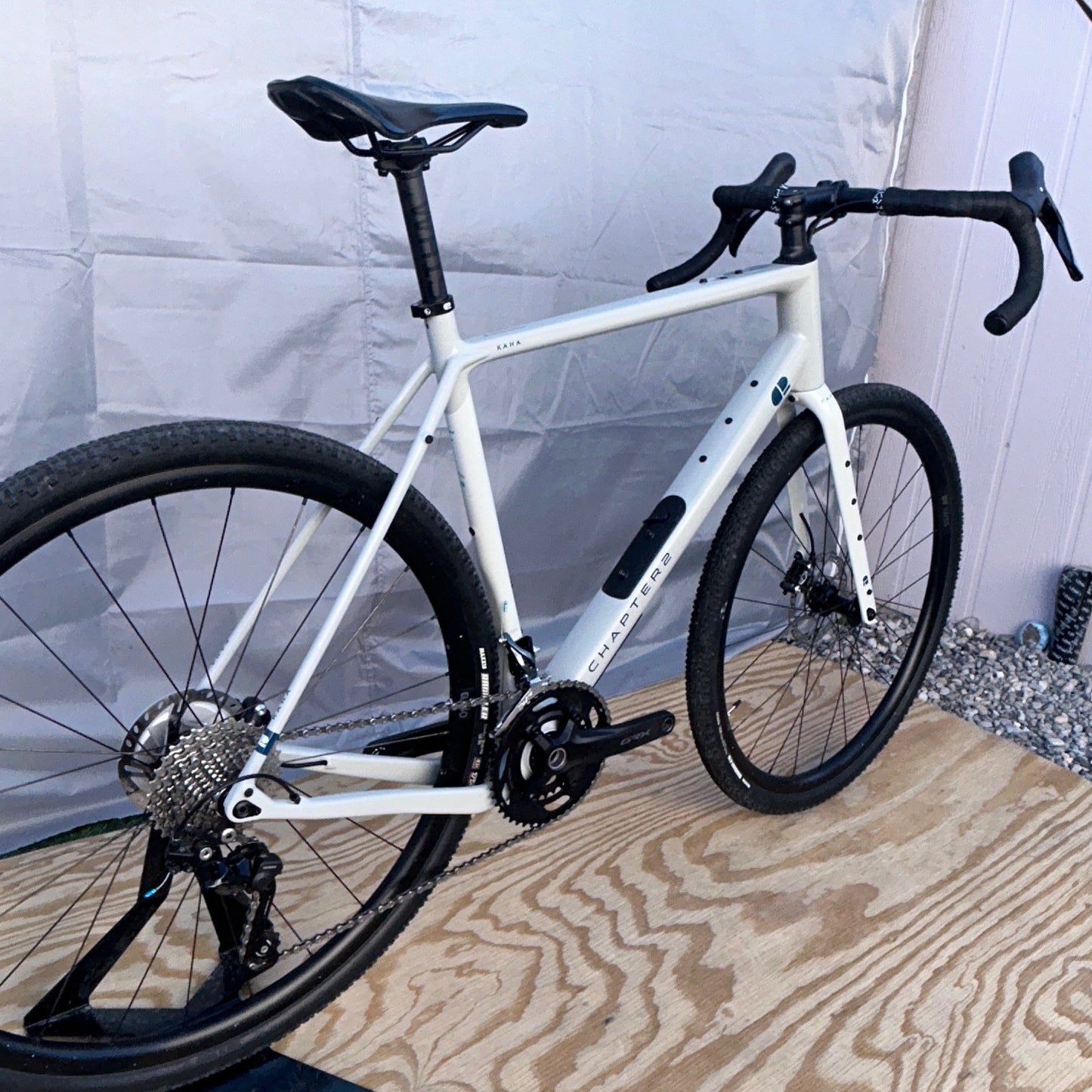

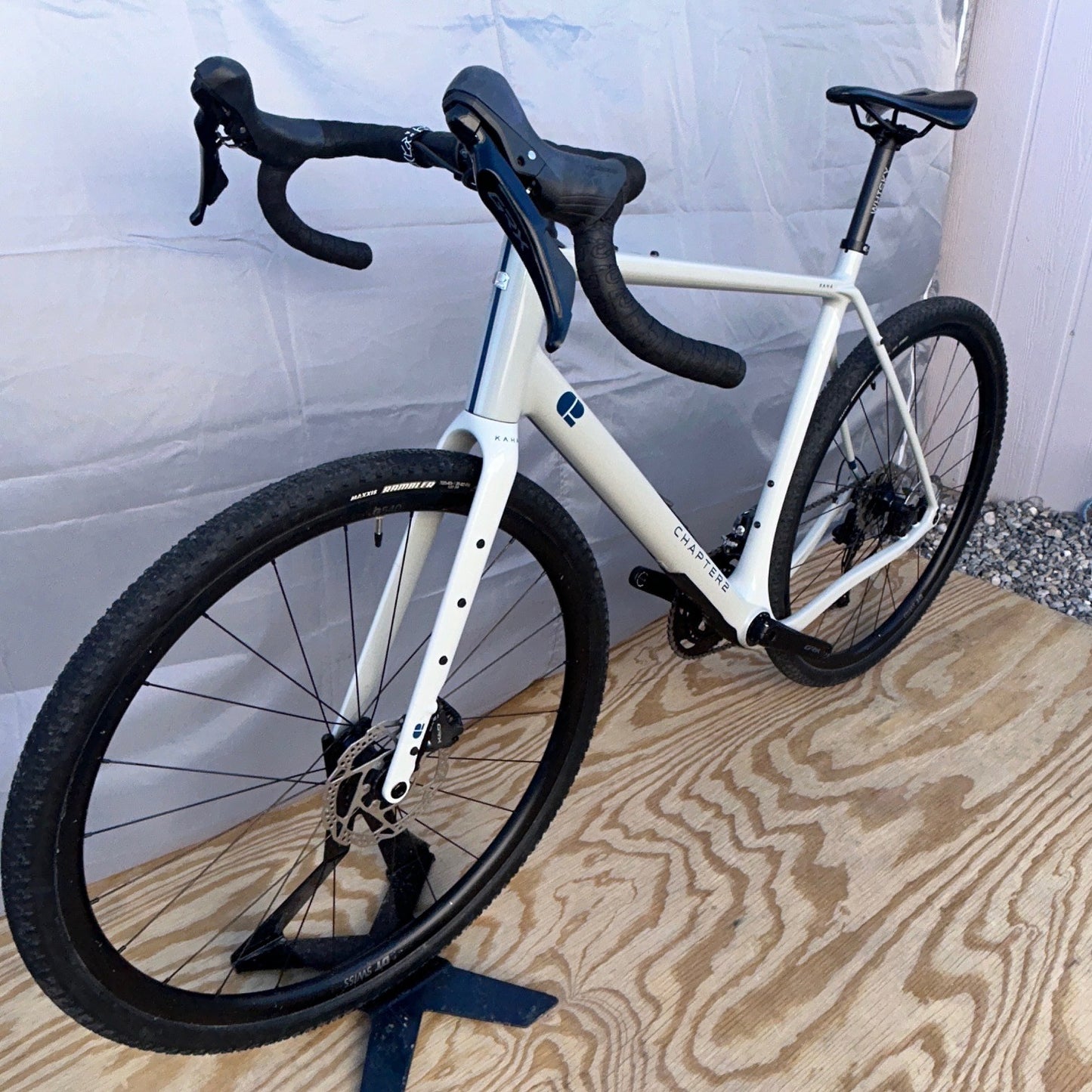

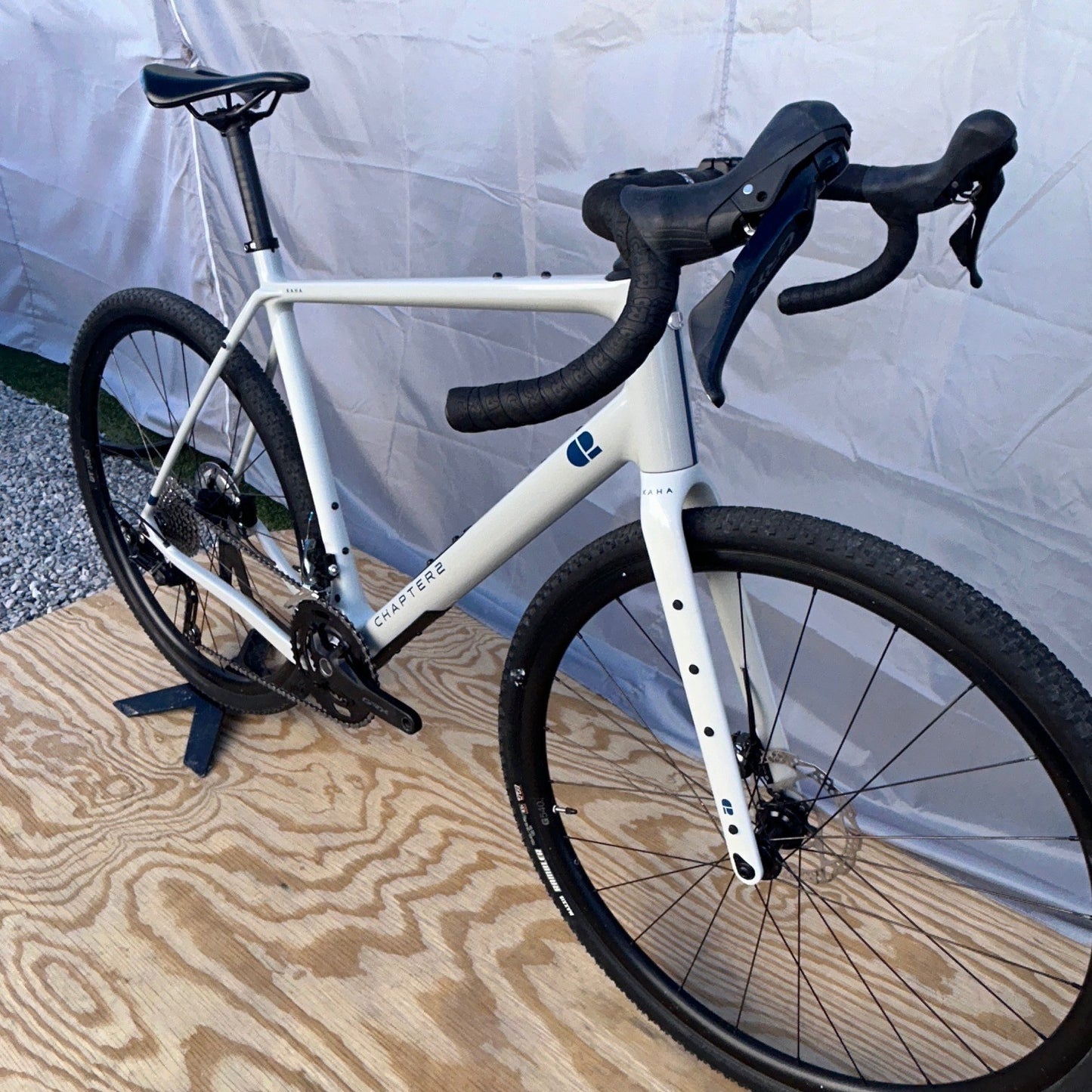

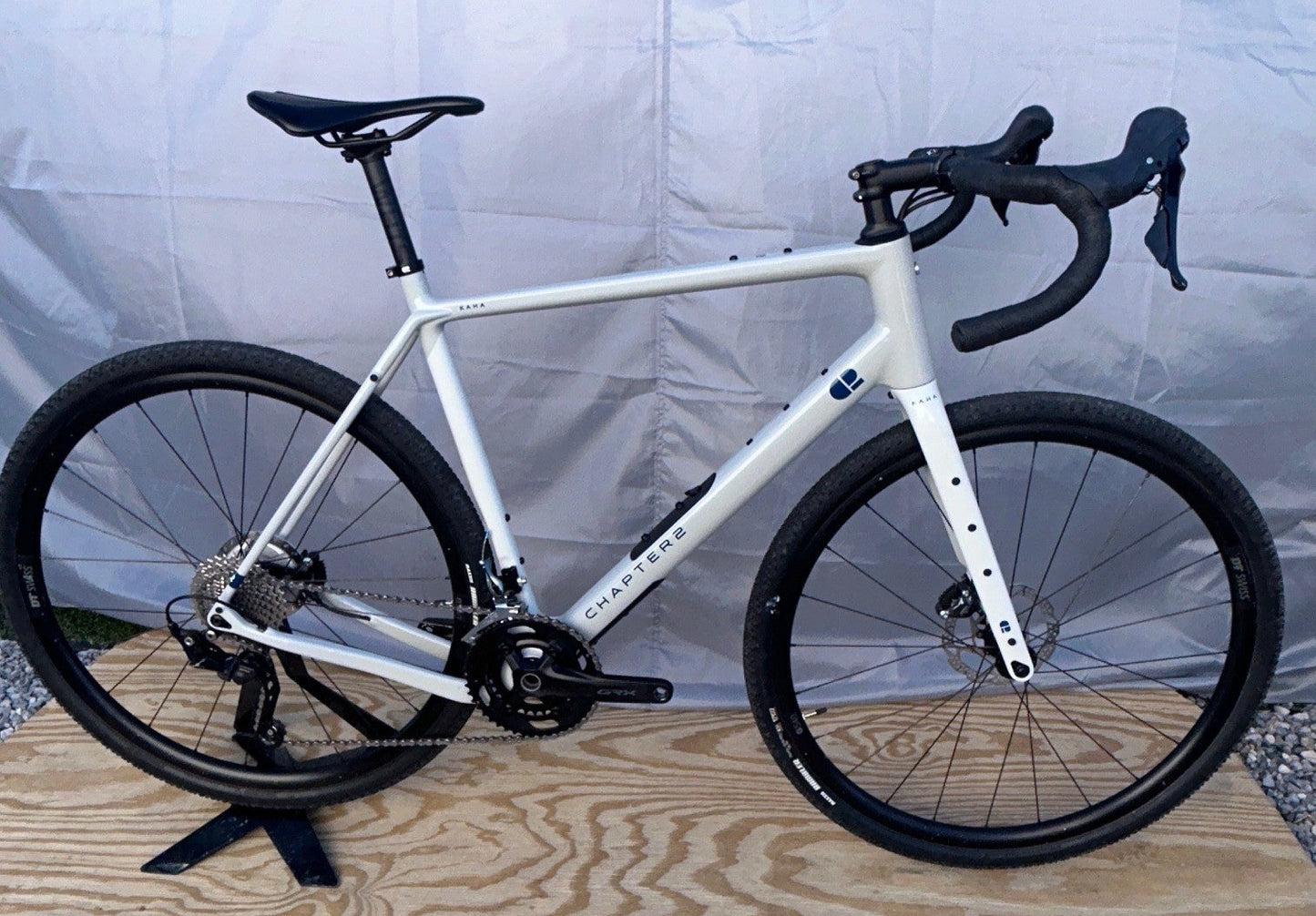

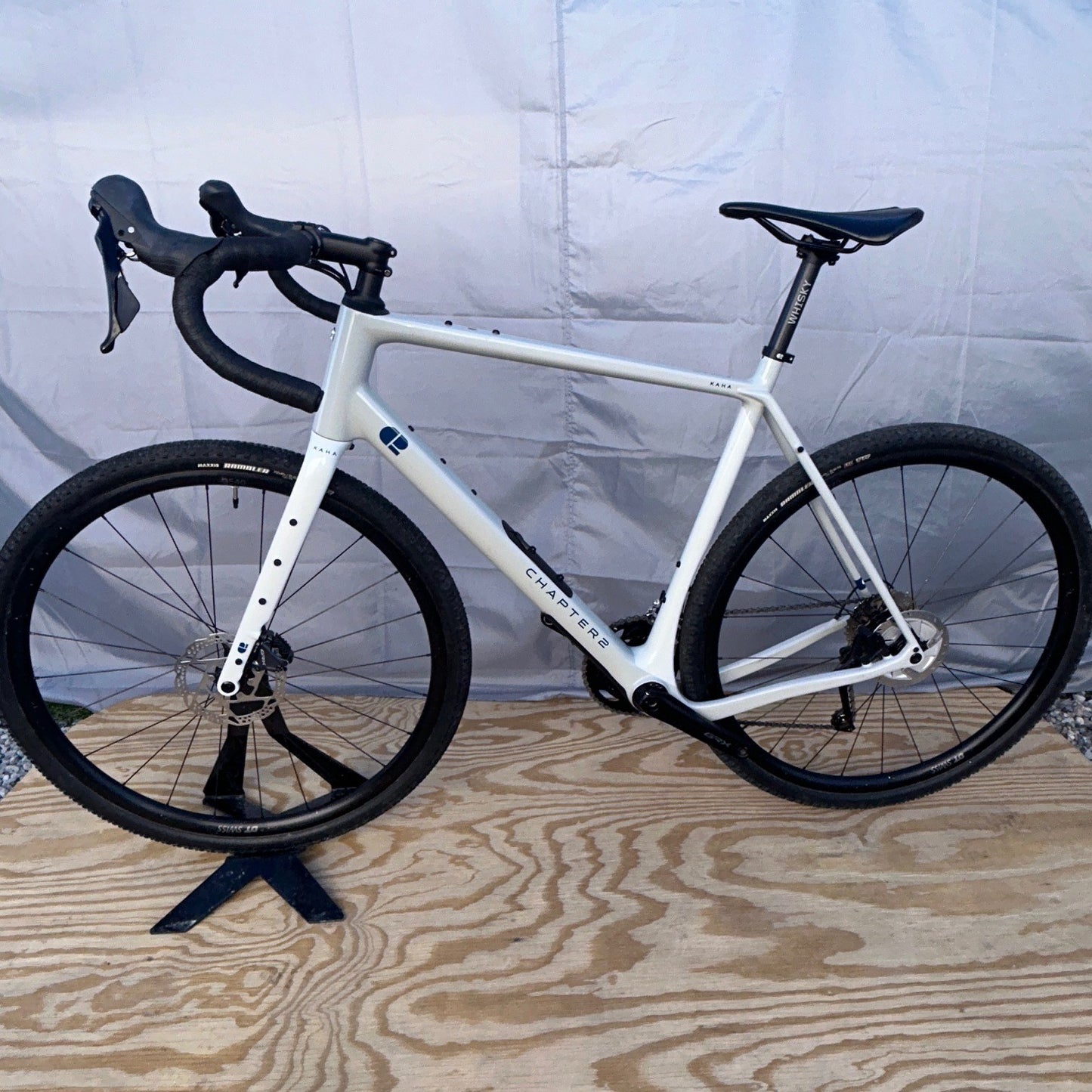

CHAPTER2 KAHA GREY/BLUE CARBON GRAVEL BIKE SHIMANO GRX LARGE 56CM

Selling my personal Gravel Bike used one season in 2024 Size Large 56 cm. I had the frame with Ride Wrap and I removed most of them except from the bottom of the chainstays and downtube and bottom of the fork.

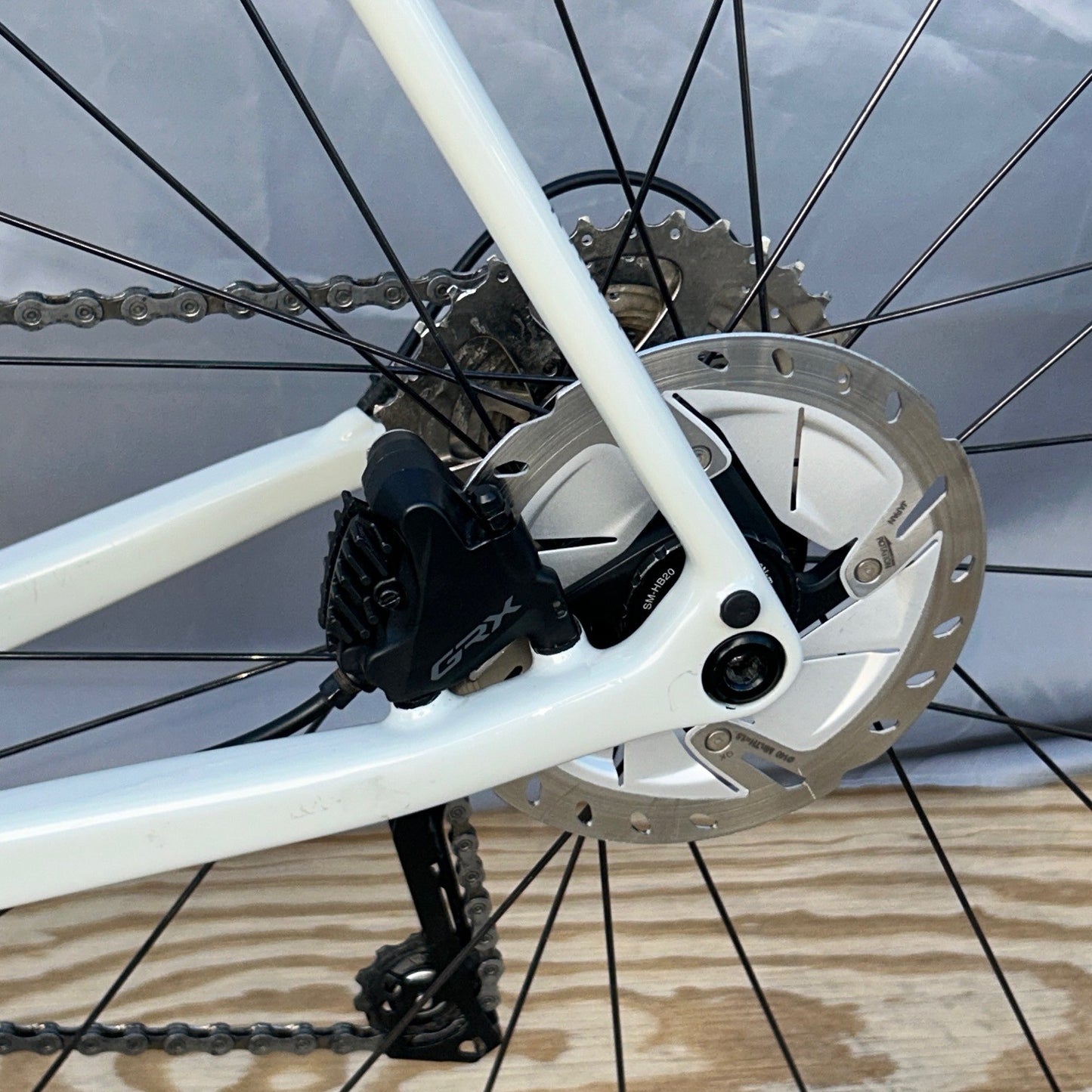

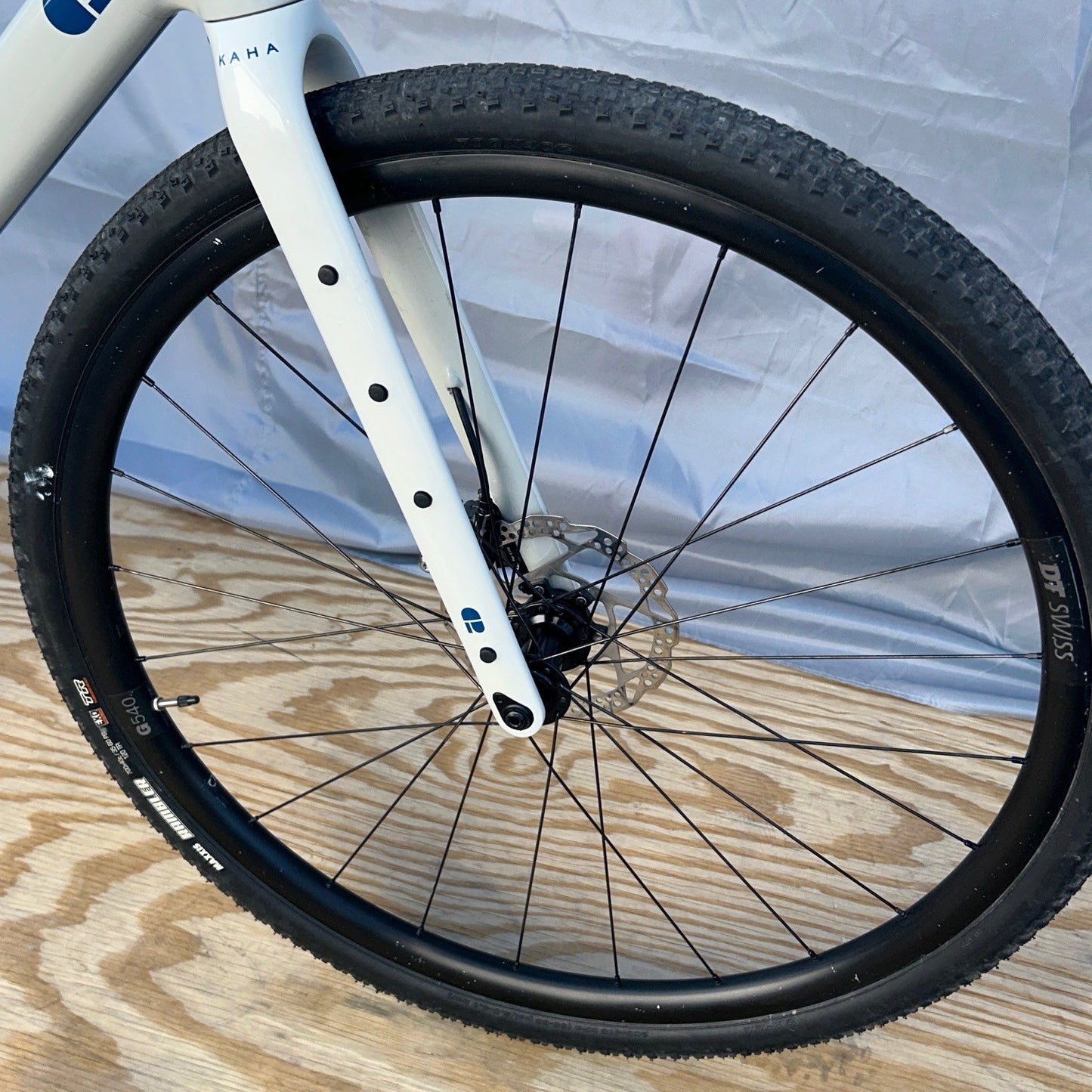

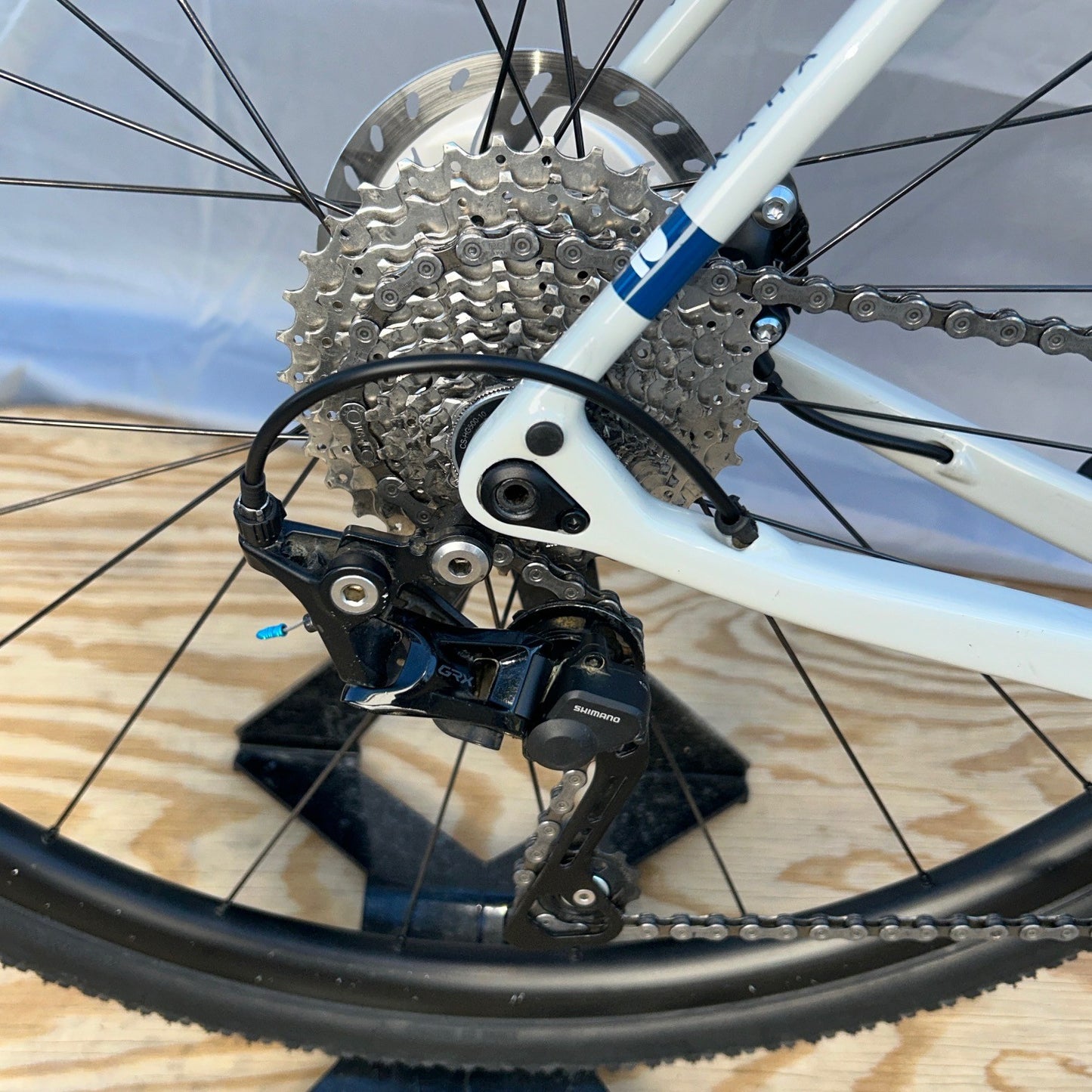

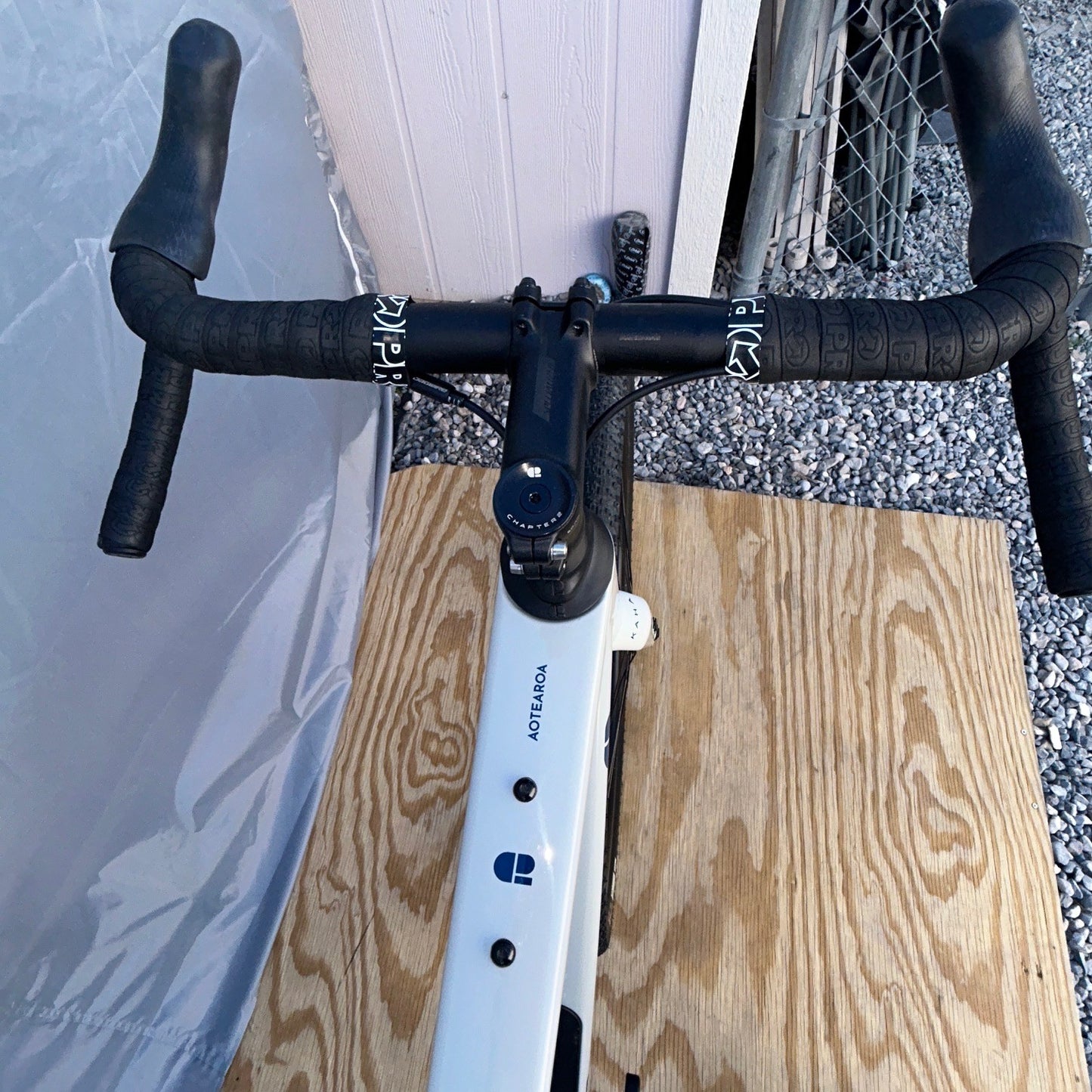

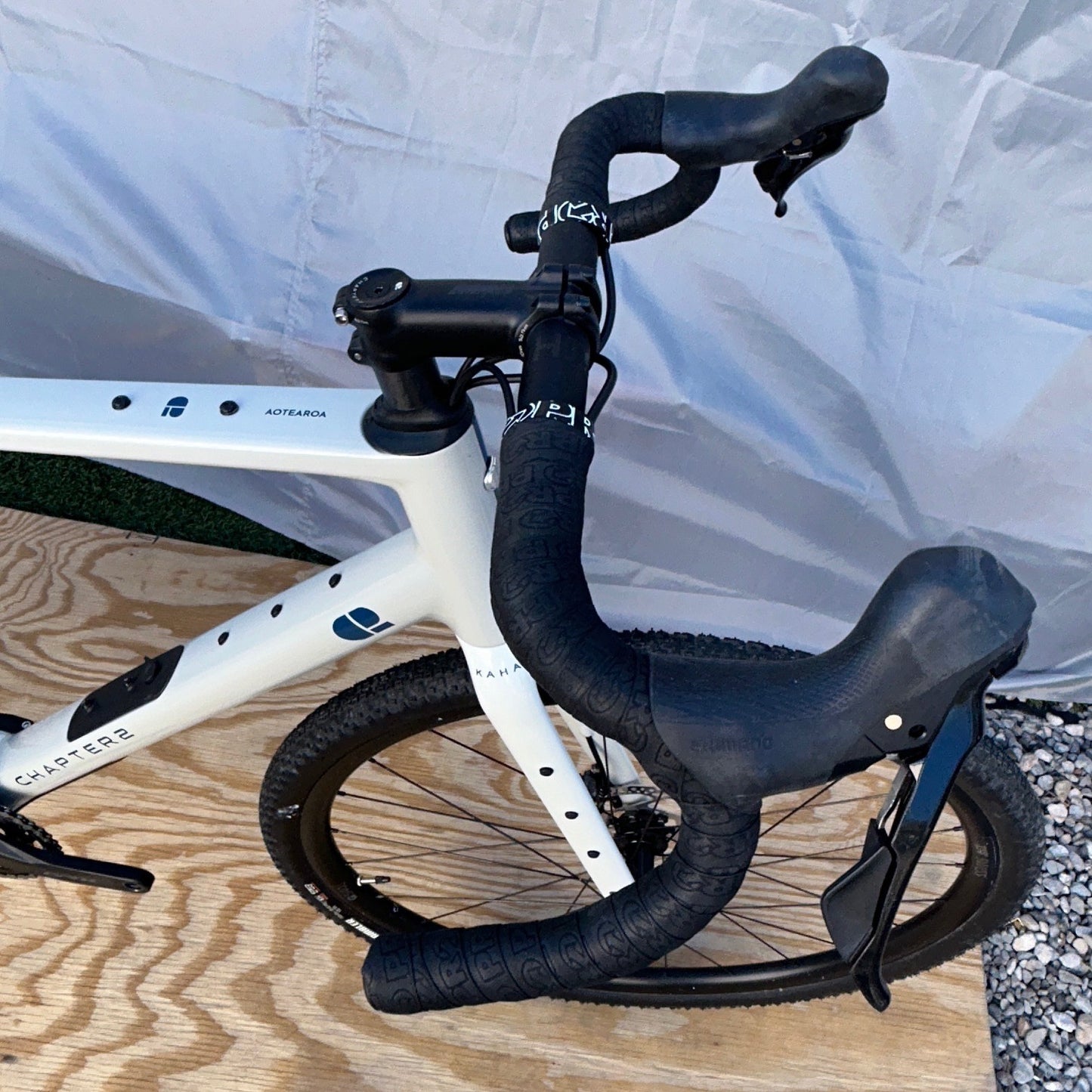

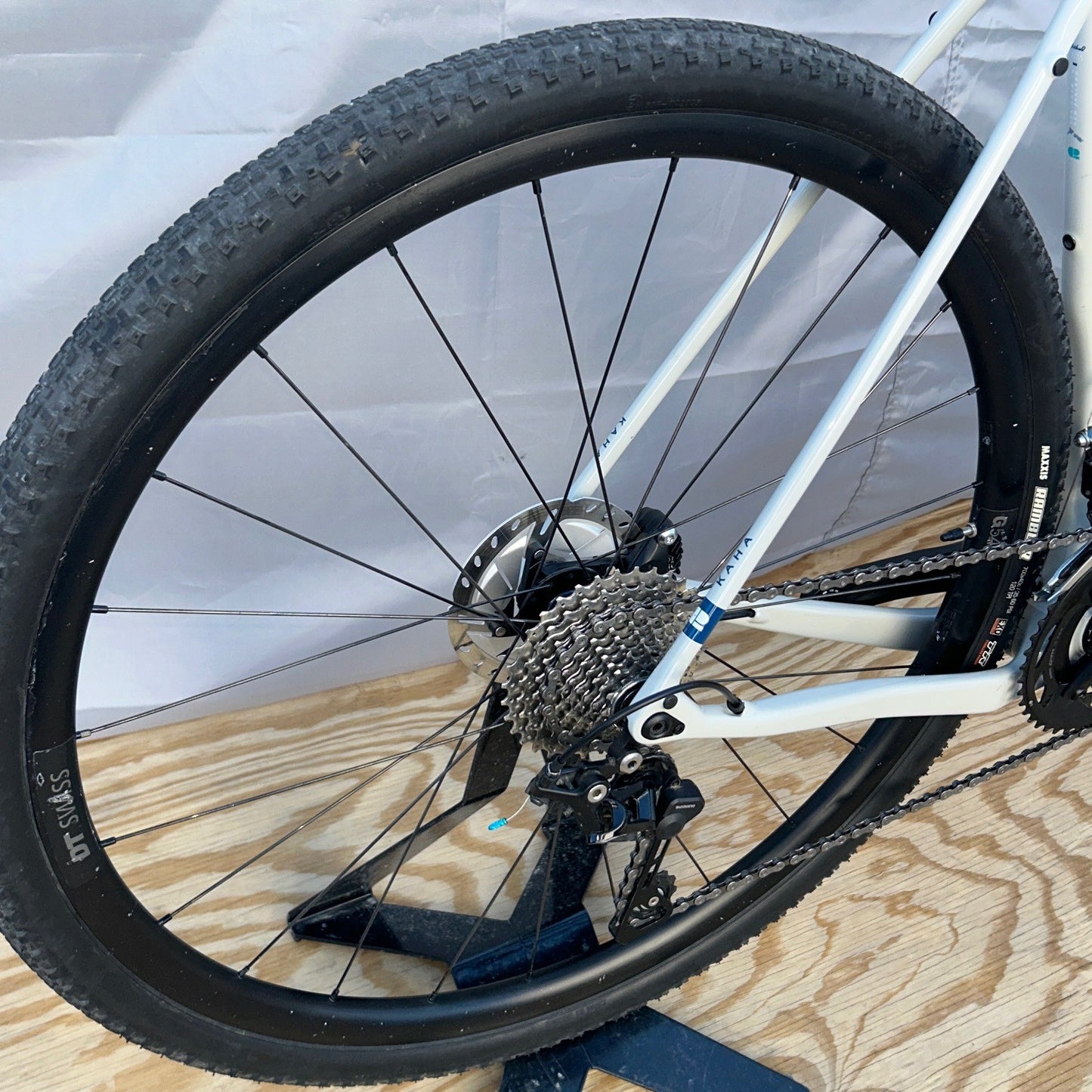

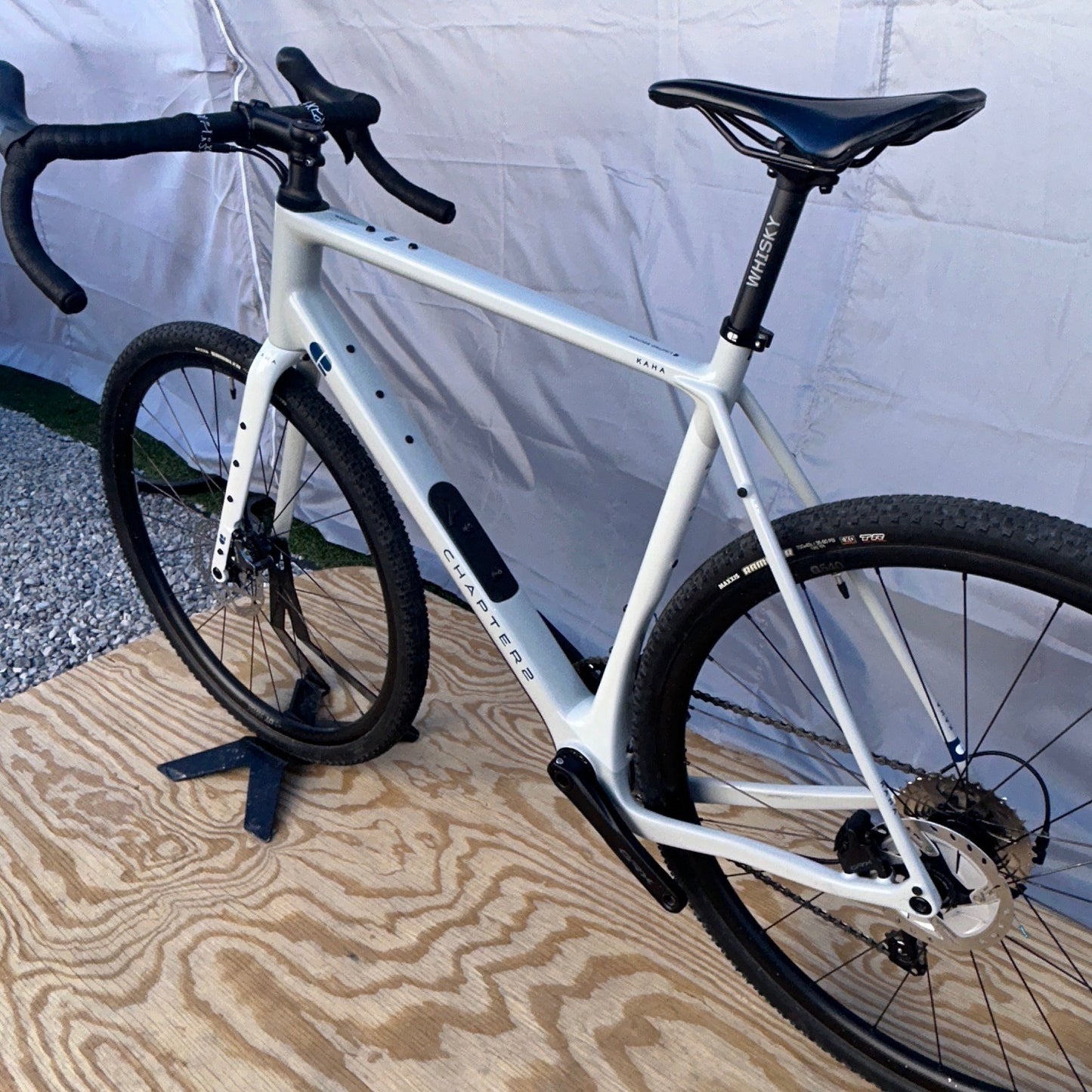

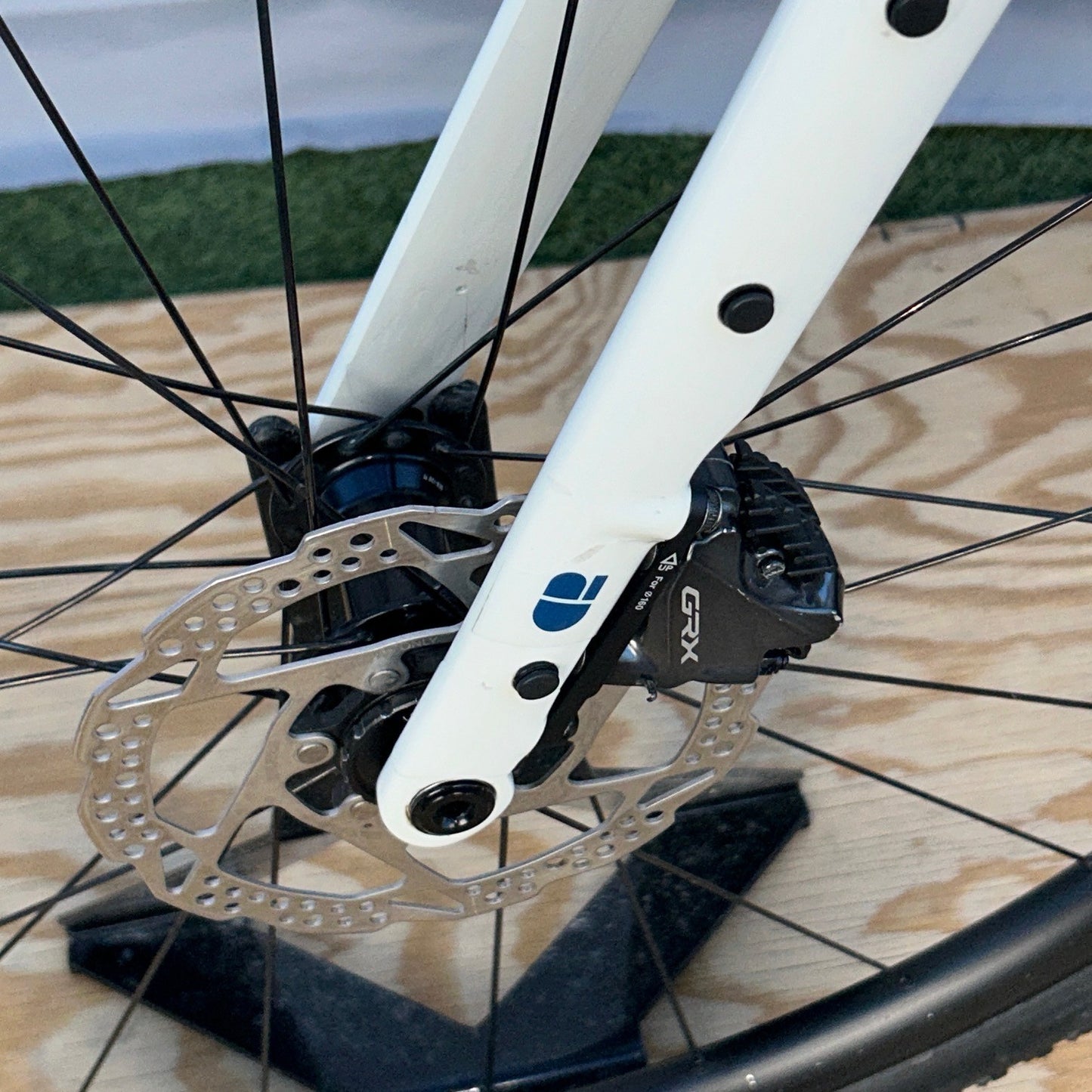

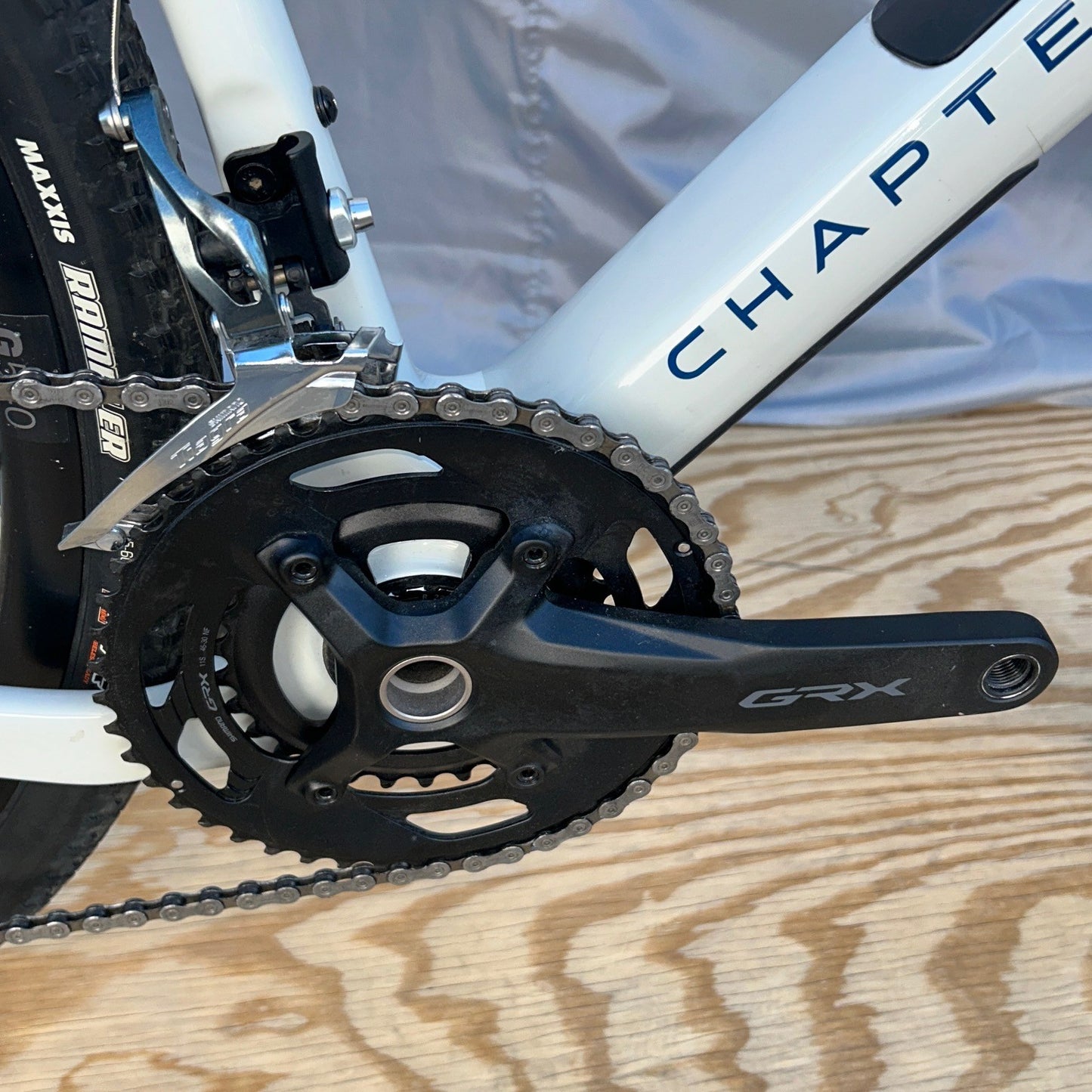

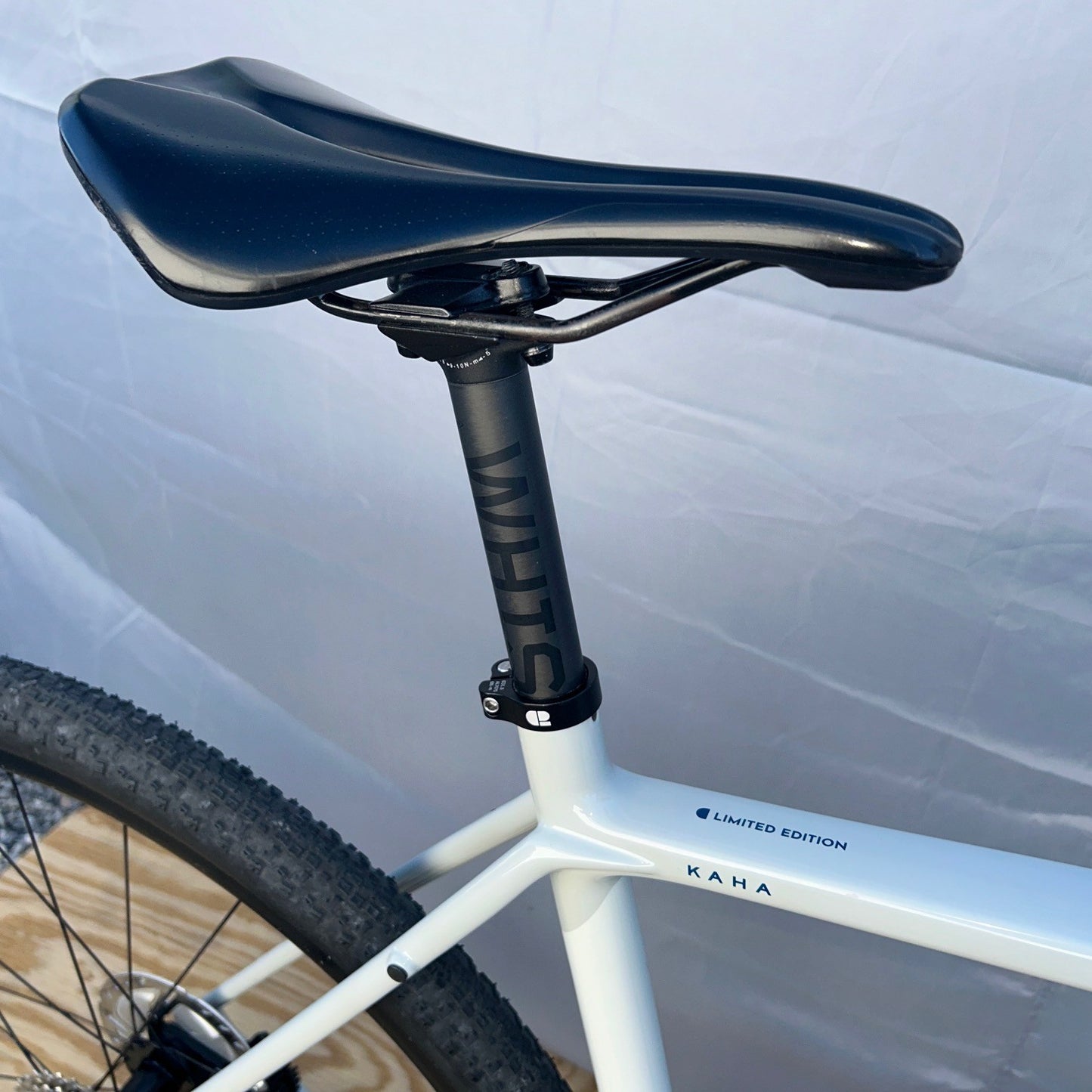

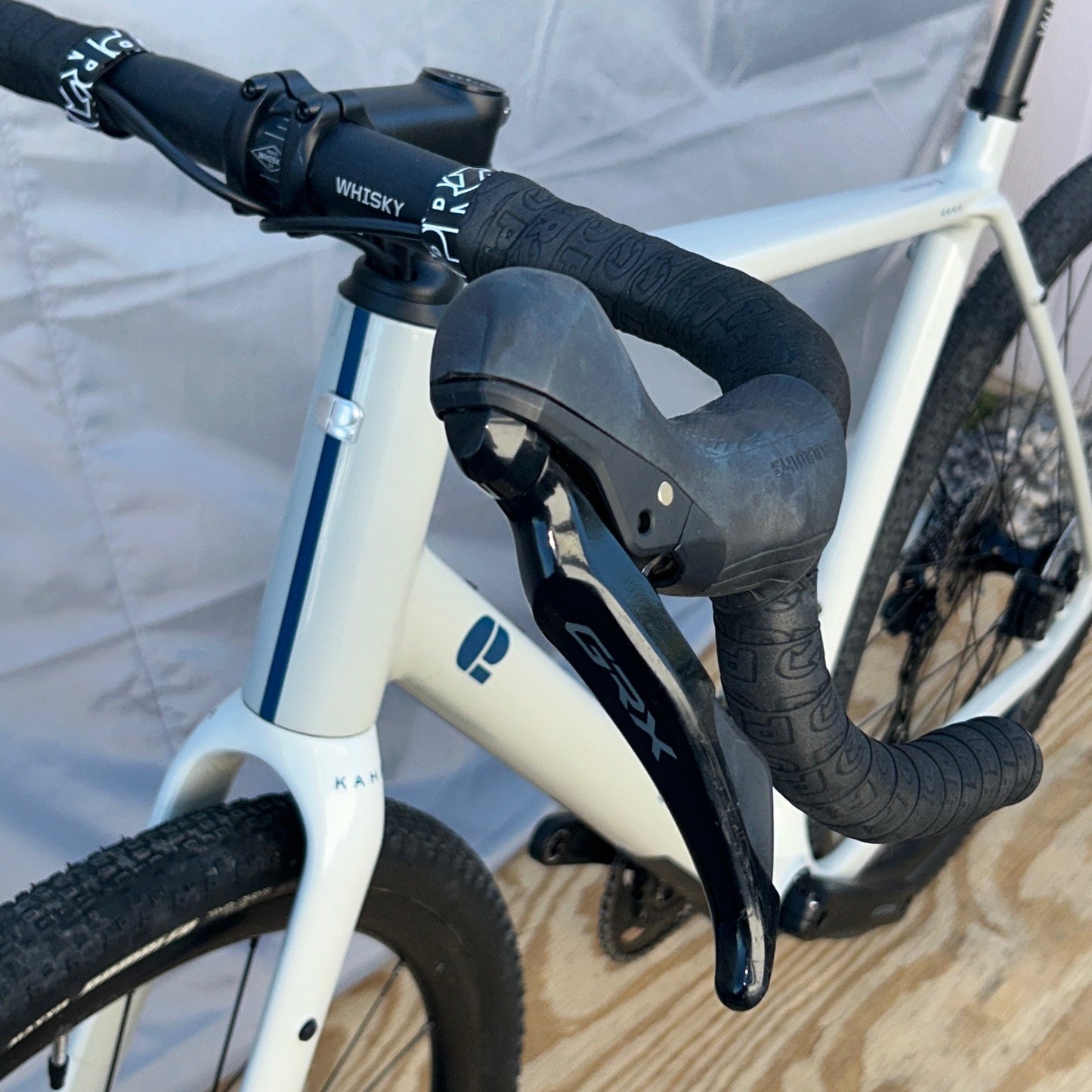

Because of it, the frame is immaculate. I re-built the frame with my older Shimano 2x10 speed GRX Hydraulic disc Brakes, Whisky Carbon Seatpost, new Gravel Whisky Flare out Handlebar, a 90 mm alloy stem to handle the technical section, older Specialized Phenom Seat and some DT Swiss G540 Wheelset. I put some Maxxis Rambler 700x40 c Tires, very versatile and finish the built with a nice Shimano Pro Black Tape.

This Frameset retail for $2,500. I'll be selling this complete bike for less than the frameset!

Technical Specs and Bonus:

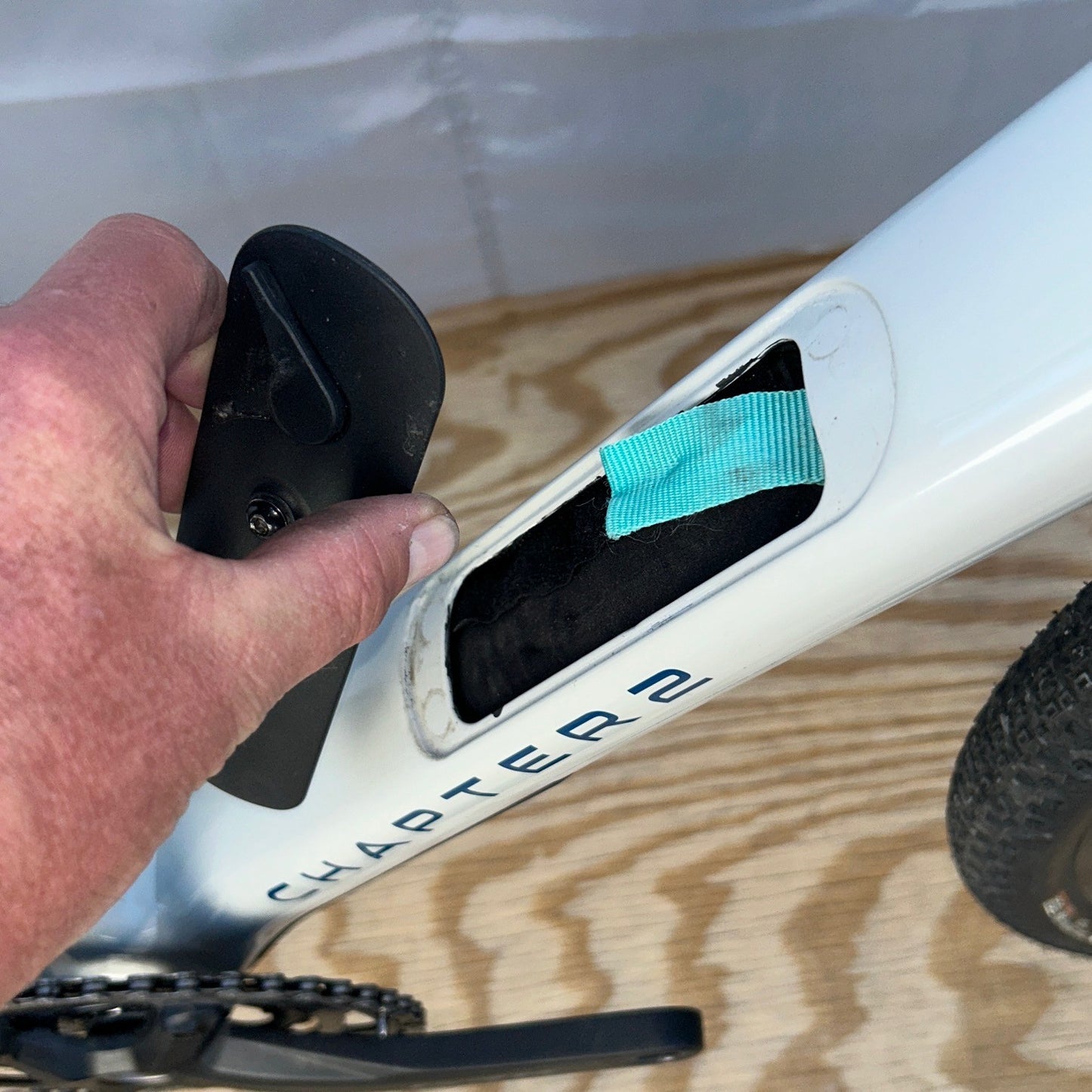

• Storage compartment is available under the front water bottle cage compartment (see picture) where a zipper bag is available to put your fix-a-flat kit

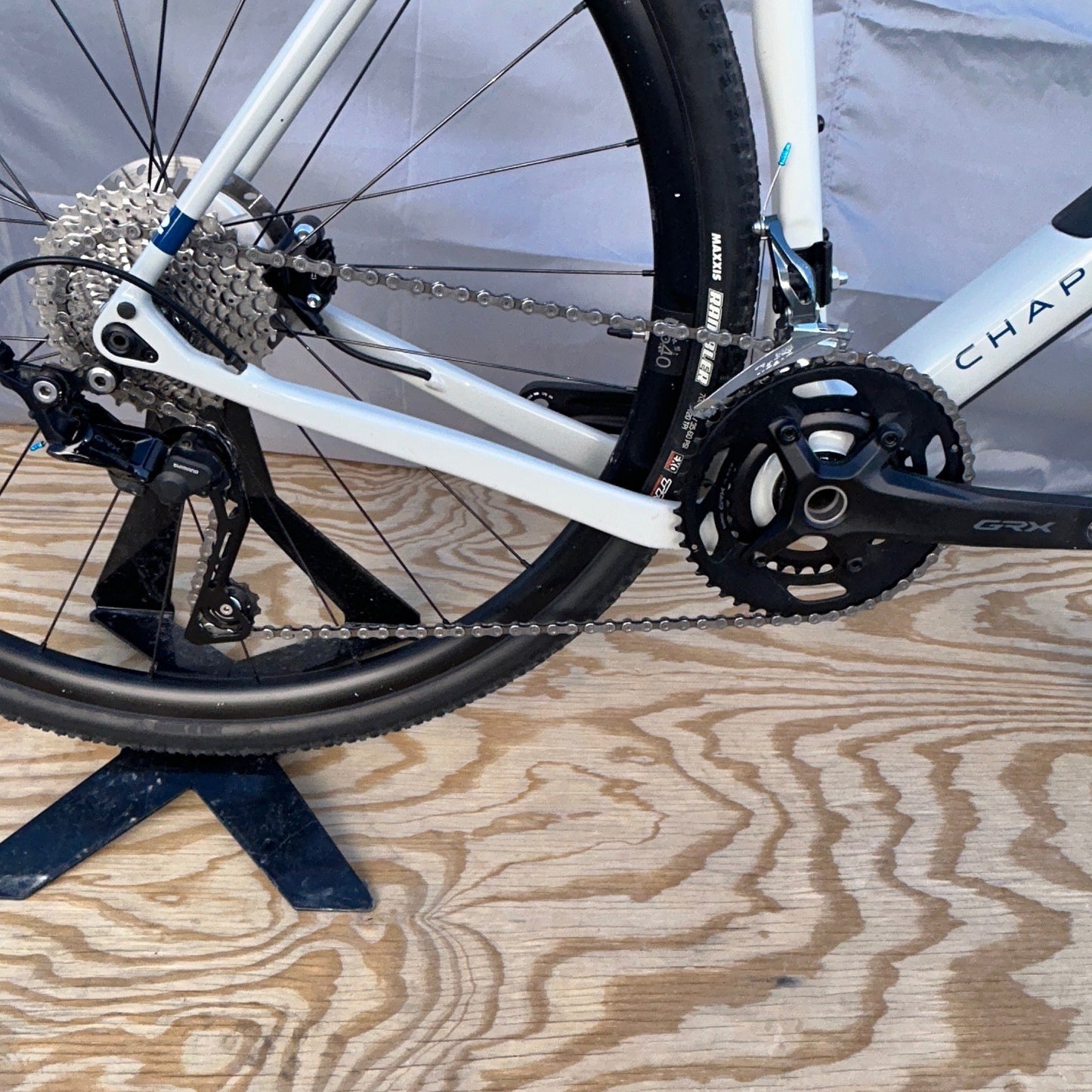

• T47 Bottom Bracket for 24 mm Spindle is also installed on this frame with incredibly smooth bearings
• Tires are tubeless (add tubeless sealant every 8 weeks as suggested)
• All hardware and owner manual from Chapter2 provided (all special headset spacers for integrated Mana Bar/Stem combo provided)

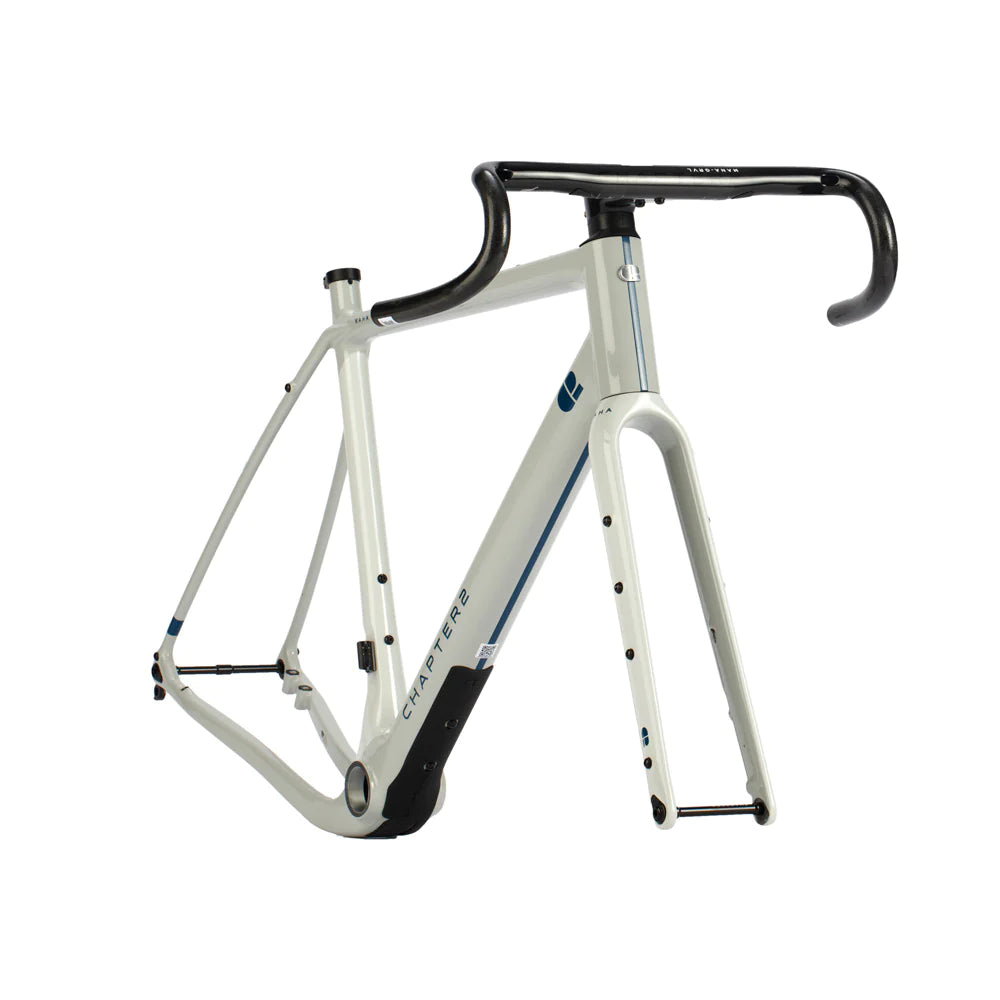

DETAILS FROM CHAPTER2

Speed! We all seek it, we all thrive on it.

The KAHA is here to deliver your need for speed in a comprehensively designed and engineered frame and handlebar system that will have you fizzing with excitement when you get down and dirty with your next Gravel Adventure.

The design brief for the KAHA was relatively simple, scratched onto the back of an envelope were the words “Controlled Speed”.

However, the journey to arrive at the perfect solution was anything but simple. We didn't want to skimp on practical details like storage, pannier/fender racks, or the ability to fit TT-Clip bars.

The integration of cutting-edge technology, such as GPS and performance tracking, makes the KAHA not just a bike, but a smart companion for your cycling adventures.

 Whether it's tackling steep inclines or cruising through winding paths, the KAHA stands ready to elevate your cycling experience to new heights.

ABOUT THE KAHA:

Performance Geometry: Improved Agility at Speed

Optional Integrated MANA-GRVL: Improved Aerodynamics and Clean Aesthetics

Optional MANA-GRVL (Clip-on): Ability to use Clip-on Bars

50mm Front & 47mm Rear Tire Clearance: Increased Tire Options

Integrated Storage: Hidden Storage for CO2 Cartridges/Tubes etc

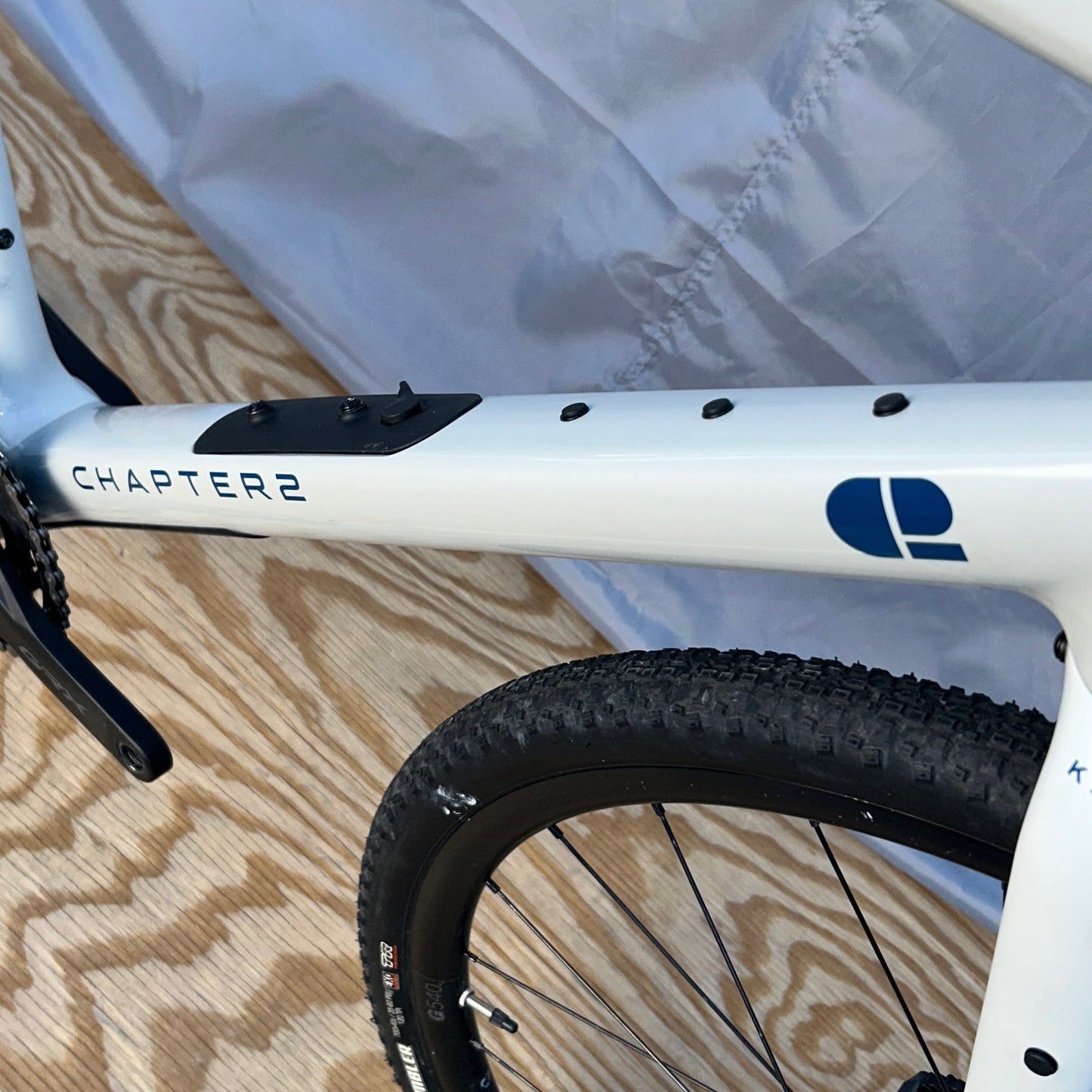

Ample Mounting Points: Flexible Hydration, Luggage & Rack Options

T47 BB: Noise-free and Easy to Service

Carbon:

100% Made in Japan by Toray

Frame 5 Sizes:

XS, S, M, L & XL

Fork Rakes (2):

XS, S (65mm offset) and M, L, XL (55mm offset)

Frame Weight:

1,099g Size M +/-3%

Fork Weight:

409g +/-3%

Handlebar/Stem (MANA-GRVL):

330g (100x491mm) +/-3%

Headset:

1.5” C2 Integrated System

Mechanical & Electric Shifting:

Versatile Groupset Options

Electronic Shifting:

SHIMANO®️ Di2, SRAM®️ AXS Groupset (KAHA Glossy Black Not Sram UDH compatible) & Campagnolo®️ EPS compatible

Battery Type:

Di2 SM-BTR-2 or BT-DN300 and EPS V3 Battery Compatible

Tire Clearance:

47mm (700C) & 47mm (650B)

Brake Type:

Disc Only (140 & 160 Rotors)

Bottom Bracket:

Internal T47 (85.5)

Safety Standard:

EN ISO 4210:2014

GEOMETRY - SEE LARGE

KAHA	XS	S	M	L	XL
Stack	519	545	571	596	622
Reach	377	386	395	404	413
A. Top Tube	535	553	569	586	603
B. Head Tube	101	129	148	175	202
C. Seat Tube Angle	73°	73°	73°	73°	73°
D. Head Tube Angle	71°	71°	72°	72°	72°
E. Seat Tube	436	462	491	512	541
F. BB Drop	70	70	70	70	70
G. Rear Centre	415	415	415	415	415
H. Wheelbase	1009	1027	1024	1041	1059
I. Front Centre	604	622	619	636	653
J. Fork Offset	65	65	55	55	55
Stem	NA	NA	NA	NA	NA
Standover	751	776	804	826	853
Rider Height	160-170	165-175	170-180	175-185	>180
Max / Tire Size F/R	50/47	50/47	50/47	50/47	50/47
Rear Caliper Mount	25	25	25	25	25
